Tianjin Kelioil Engineering Material and Technology Co., Ltd. is one of the leading manufacturers and suppliers of cement slurry atmospheric consistometer in China. Please feel free to buy high quality cement slurry atmospheric consistometer at low price from our factory. If you have any enquiry about free sample, please feel free to email us.

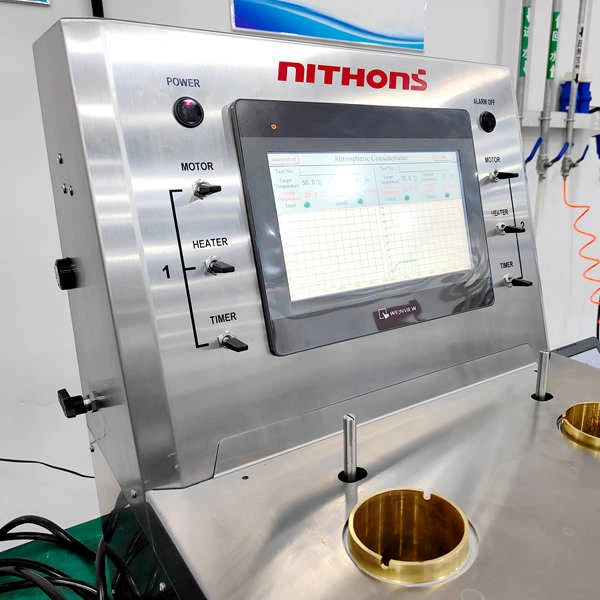

The atmospheric consistometer is used to measure the consistency of cement slurry at temperatures up to 93°C (200°F). In addition, it can function as a curing chamber, enabling sample conditioning under controlled conditions for subsequent testing, including free fluid, rheological properties.
The atmospheric consistometer can do the two test independently.

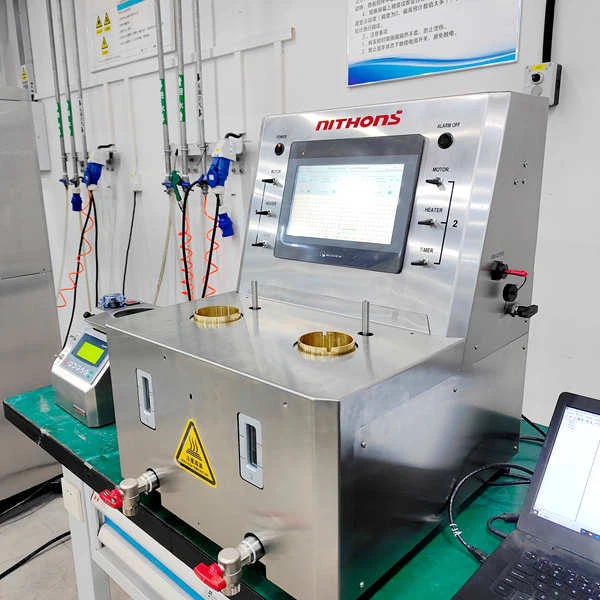

Atmospheric Consistometer from Nithons factory
Technical Parameters
|
Max. Temperature |
93℃ |
Max. Working Pressure |
Atmospheric |
|
Input Voltage |
AC 100-110V 60Hz/220V 50Hz |
Heater Power |
1200W*2 |
|
Consistency Range |
0-100Bc |
Rotation Speed |
150±15rpm |
|
Dimensions (W*D*H) |
54*65*65cm |
Weight |
75kg |
|
Pressure of Cooling Water |
0.2-0.5MPa |
Connector Size of Cooling Water Pipe |
Inner Diameter:10mm |
|
Input Power |
2600W |
Connector Size of Cooling Water Pipe Slurry Cup Volume |
Inner Diameter: 10mm |
|
470ml |
Key feature
Dual Cell and Dual Temperature Control System
The atmospheric consistometer can do the two test independently.
Mixing Paddle with Removable Cone Point Threaded Rod
The mixing paddle is designed with a removable cone-point threaded rod. When the rod wears out, users can simply replace the rod instead of the entire mixing paddle. This helps extend the service life of the paddle and reduces replacement costs.
