NBCQ2120 Portable HTHP Consistometer (Portable HPHT Cement Thickening Time Tester)

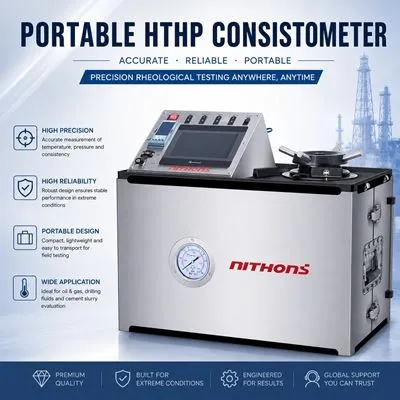

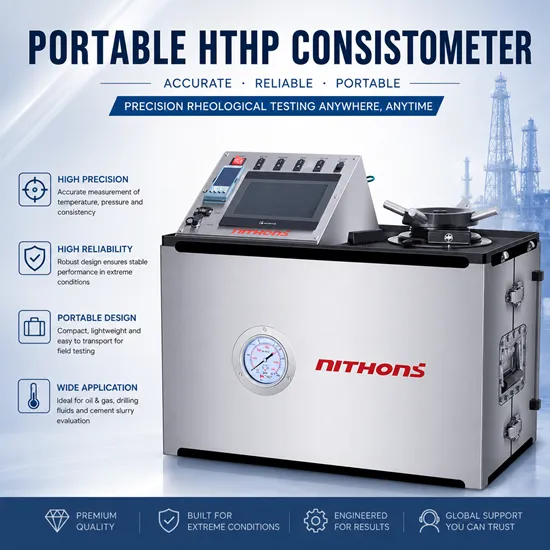

NBCQ2120 Portable HTHP Consistometer is a compact and high-performance Portable HPHT Consistometer designed for cement slurry thickening time testing under simulated downhole high temperature and high pressure conditions.

Also known as a Portable Pressurized Consistometer or Portable Cement Thickening Time Tester, this unit provides reliable consistency measurement in Bearden Units (Bc) and generates real-time thickening time curves (Bc vs time) for oilwell cementing laboratory and mobile testing applications.

Model: NBCQ2120
Type: Portable Single Cell HTHP Consistometer
Series: Portable Cement Testing Series
Application: Cement slurry thickening time evaluation under HPHT conditions
Testing Standard: API Spec 10A / ISO 10426-1

1. What Is a Portable HTHP Consistometer Used For?

A Portable HTHP Consistometer is used to evaluate oilwell cement slurry thickening time and pumpability under controlled temperature and pressure conditions, while offering a compact design for easy transportation and field laboratory deployment.

The NBCQ2120 Portable HPHT Consistometer is ideal for customers who require high-pressure thickening time testing but do not want a heavy benchtop or floor-standing system.

Typical applications include:
- Cement slurry thickening time testing for mobile cement labs
- On-site cement slurry formulation verification
- Cement additive screening and performance comparison
- Research & development for oilwell cement slurry systems
- Cementing laboratory quality control under limited space conditions

2. Why Choose NBCQ2120 Portable HPHT Consistometer?

Compact Portable Design for Easy Transport
The NBCQ series is engineered as a portable cement thickening time tester. With compact dimensions and optimized structure, it is suitable for laboratories requiring mobility, limited space, or flexible deployment.

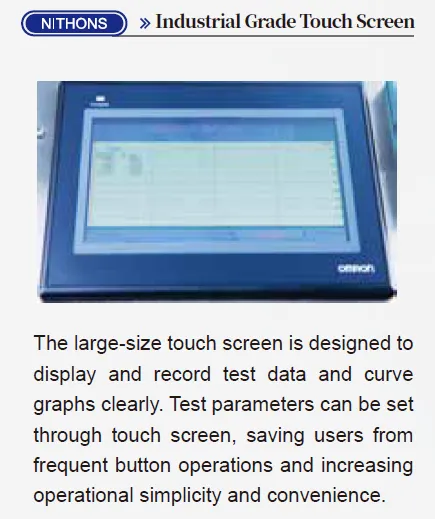

Industrial Grade Large Touch Screen Display
NBCQ2120 uses an industrial-grade large-size touch screen to display and record test data and curve graphs clearly. Test parameters can be set directly through the touch screen, improving operation convenience and reducing frequent button operations. :contentReference[oaicite:0]{index=0}

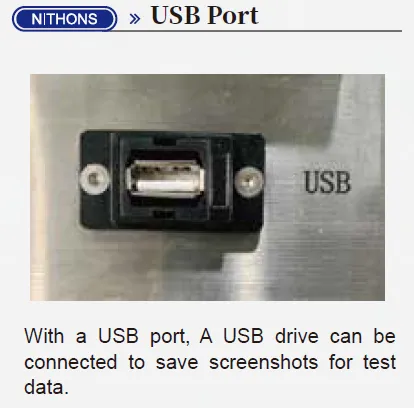

USB Port for Screenshot Saving
With a USB port, users can connect a USB drive to save screenshots and test results. This provides convenient documentation for cementing lab reports and quality traceability.

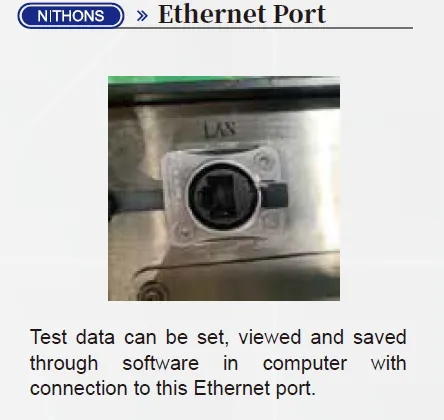

Ethernet Port for Computer Software Connection
The Ethernet port allows test data to be set, viewed, and saved through computer software. This improves data management and supports professional laboratory reporting requirements.

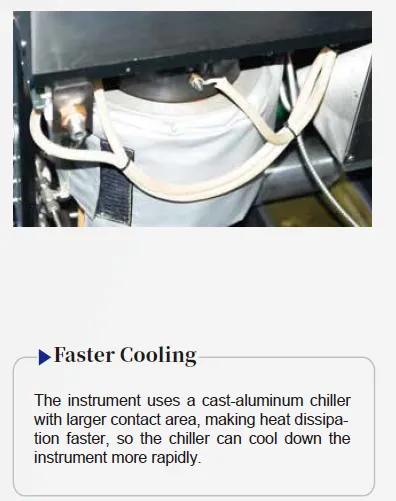

Faster Cooling with Cast-Aluminum Chiller
The instrument uses a cast-aluminum chiller with a larger contact area, improving heat dissipation and allowing faster cooling. This reduces waiting time between tests and increases laboratory efficiency.

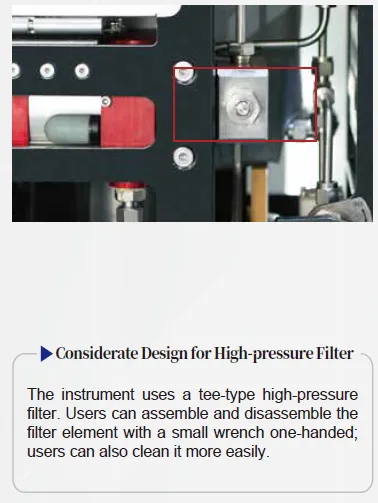

Considerate Tee-Type High-Pressure Filter Design
NBCQ2120 adopts a tee-type high-pressure filter. Users can assemble and disassemble the filter element with a small wrench one-handed, and the filter can be cleaned easily. This design saves time and improves daily maintenance convenience.

Improved Potentiometer Design for Accurate Consistency Measurement
Compared with conventional portable consistometers, the NBCQ series uses an improved potentiometer that is easier for zero-point adjustment and provides more stable contact performance. The spring is installed at the bottom side, preventing it from being adhered to cement slurry during testing.

Thermocouple Protection Design for Safer Operation
The thermocouple has a protection design and can be placed in a protective tube, reducing damage risk and improving safety during operation.

Multiple Parameter Alarm Settings
The NBCQ Portable HTHP Consistometer supports multiple alarm parameter settings, improving operational safety and helping users avoid test failures caused by abnormal temperature or pressure conditions.

3. NBCQ2120 Portable HTHP Consistometer Technical Specifications

4. Portable HPHT Consistometer vs Conventional Portable Consistometer

Many customers compare the NBCQ Portable HTHP Consistometer with conventional portable consistometers. NBCQ series offers several improvements that enhance testing accuracy, usability, and maintenance efficiency.

Cooling System Improvement
NBCQ uses a stainless coil pipe installed in the cast-aluminum chiller, improving cooling efficiency and prolonging chiller service life. Conventional portable models often use copper coil pipe chillers with small contact area, which may get blocked and require longer cooling time.

High-Pressure Filter Upgrade
NBCQ uses a tee-type high-pressure filter which can be disassembled easily with a small wrench one-handed, making cleaning faster and easier. Conventional straight-through type filters often require a large wrench and two-handed disassembly, wasting time and energy. :

Potentiometer Design Optimization
NBCQ improved potentiometer is easier for zero-point adjustment and provides stable contact. Conventional potentiometers are often complex to adjust and the contact arm may loosen, affecting test accuracy.

Touch Screen Interface vs Traditional Gauges
NBCQ displays temperature, pressure, and consistency on one touch screen with curve recording, while conventional portable consistometers often require users to read three different gauges and set parameters through a complicated controller system.

6. Real-Time Thickening Time Curves (Bc vs Time) and Data Recording

The NBCQ2120 Portable HTHP Consistometer can display thickening time curves (Bc vs time) clearly on the touch screen. It provides real-time monitoring of cement slurry consistency evolution under high temperature and high pressure conditions.

Recorded data typically includes:
- Consistency (Bc) vs time curve
- Temperature curve
- Pressure curve
- Test status and alarm information

Users can save curve screenshots through the USB port or export test data through Ethernet connection to computer software for laboratory reporting.

7. Typical Applications of NBCQ Portable HPHT Consistometer

The NBCQ2120 portable cement thickening time tester is suitable for evaluation of many oilwell cement slurry systems, including:
- API Class G / Class H cement slurry systems
- Medium temperature cement slurry systems
- Salt-resistant cement slurry systems
- Cement slurry systems with retarders and dispersants
- Cement slurry systems with fluid loss additives

8. Why NBCQ2120 Is Ideal for Mobile Cement Laboratories

For mobile cement labs, space is limited and equipment must be stable, reliable, and easy to operate. The NBCQ2120 Portable HTHP Consistometer provides several advantages:
- Compact size and portable structure (69*44*60 cm)
- Lightweight design (124 kg) compared with floor-standing HPHT consistometers
- Fast cooling and efficient test turnaround
- Touch screen operation for easier parameter setting
- USB and Ethernet connectivity for fast data transfer

This makes NBCQ2120 a strong solution for field cement testing teams, cementing service companies, and on-site laboratory evaluation requirements.

9. Delivery, Installation and After-Sales Support

We provide full technical support for the NBCQ2120 Portable HTHP Consistometer, including:
- Operation manual and installation guidance
- Online commissioning and training support
- Spare parts supply and maintenance support
- Warranty: 【12 Months】

Delivery lead time: 【One Month】
Packing: export standard wooden case

10. Frequently Asked Questions (FAQ)

Q1: What is the difference between portable HPHT consistometer and benchtop HPHT consistometer?
A: A portable HPHT consistometer is designed for mobility and compact size, making it suitable for mobile cement labs and field testing. A benchtop or floor-standing HPHT consistometer usually provides higher temperature/pressure range and heavier structure for large-scale laboratory operation.

Q2: What is the maximum temperature and maximum pressure of NBCQ2120?
A: Maximum temperature is 204℃ and maximum working pressure is 138 MPa.

Q3: What is the rotation speed of this portable HPHT consistometer?
A: Rotation speed is 150 ± 15 rpm.

Q4: Can the NBCQ portable consistometer save test data?
A: Yes. It supports saving screenshots through USB drive and exporting data through Ethernet connection to computer software.

Q5: Is the high-pressure filter easy to clean?
A: Yes. NBCQ uses a tee-type high-pressure filter that can be disassembled with a small wrench one-handed, making cleaning faster and easier.

Q6: What is the consistency measurement range?
A: The consistency range is 0-100 Bc (Bearden Units).

11. Request a Quote for NBCQ2120 Portable HTHP Consistometer

If you are looking for a reliable Portable HTHP Consistometer or Portable HPHT Cement Thickening Time Tester, NBCQ2120 is an excellent solution for cement slurry thickening time evaluation under high temperature and high pressure conditions.

We can provide:
- Full datasheet and technical specification sheet
- Operation manual and wiring diagram
- Recommended spare parts list
- Quotation and delivery schedule
