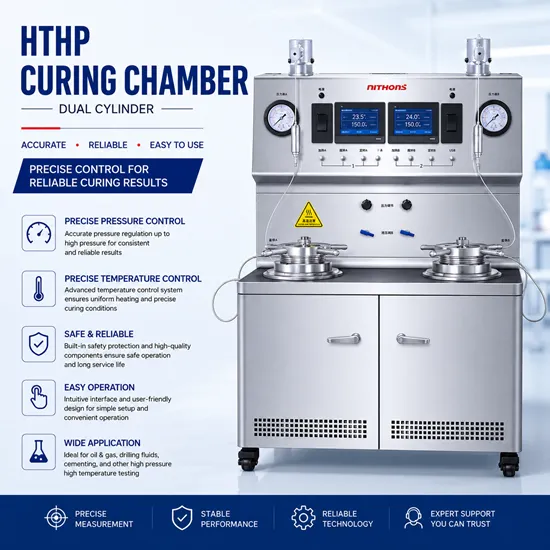

NZYQ2222 Dual Cell HTHP Curing Chamber is an advanced HTHP Curing Chamber designed for curing oil well cement specimens under simulated downhole high-temperature and high-pressure conditions. Featuring a dual-cell configuration, PLC control system, touch screen operation, Ethernet communication, and automatic cooling functions, the instrument significantly improves laboratory productivity and testing efficiency.
Compared with conventional single-cell curing chambers, the NZYQ2222 allows more cement specimens to be cured simultaneously, making it an ideal solution for cement manufacturers, oilfield service companies, research institutes, and laboratories with high testing workloads.
Model: NZYQ2222
Type: Dual Cell HTHP Curing Chamber
Application: High Temperature High Pressure Cement Specimen Curing
Keyword: Dual Cell HTHP Curing Chamber
1. What Is a Dual Cell HTHP Curing Chamber?
A Dual Cell HTHP Curing Chamber is used to cure cement specimens under controlled high-temperature and high-pressure conditions that simulate actual wellbore environments.
Compared with a single-cell design, a dual-cell configuration increases specimen capacity and improves laboratory throughput, allowing more curing tests to be completed within the same time period.
Typical applications include:
* Oil Well Cement Research
* Cement Additive Evaluation
* Compressive Strength Sample Preparation
* UCA Sample Preparation
* High Temperature Cement System Development
* Quality Control Testing
2. Key Features of NZYQ2222 Dual Cell HTHP Curing Chamber
Dual Cell Configuration for Higher Productivity
The dual-cell design allows significantly more cement specimens to be cured simultaneously compared with single-cell systems, improving laboratory efficiency and reducing testing turnaround time.
PLC Control with Touch Screen Operation
The PLC control system combined with a touch screen interface enables users to easily set temperature and pressure schedules, monitor test status, and manage curing operations in real time.
One-Nut Quick Locking Test Cell Design
The innovative one-nut locking mechanism allows operators to secure the test cell quickly without repeatedly tightening multiple bolts, reducing setup time and simplifying operation.
Ethernet Communication and Software Connectivity
The instrument supports Ethernet communication and software integration, allowing users to monitor curing conditions, store test data, and manage operations from a connected computer.
Multi-Stage Temperature Control
The PLC system supports programmable multi-stage temperature control for accurate simulation of downhole curing environments.
Multiple Filter Protection System
Integrated water filtration and high-pressure filtration systems help protect valves, pipelines, and pressure components from contamination and wear.
Optimized Double-Sealing Structure
The advanced sealing design combines metal and rubber sealing elements to provide reliable high-pressure sealing performance while simplifying maintenance.
Automatic Cooling Function
After completion of the curing cycle, the system can automatically perform cooling operations to improve safety and reduce operator workload.
Comprehensive Safety Protection
The instrument includes overpressure protection, alarm and pre-alarm functions, thermal insulation protection, and safety monitoring systems for reliable HTHP operation.
3. Technical Specifications
| Item | Specification |
| Model | NZYQ2222 |
| Type | Dual Cell HTHP Curing Chamber |
| Maximum Temperature | 370°C |
| Maximum Working Pressure | 40 MPa |
| Number of Cement Specimens | 16 |
| Input Voltage | AC100-110V 60Hz / AC220V 50Hz |
| Heater Power | 4500 W × 2 |
| Input Power | 9500 W |
| Dimensions (W × D × H) | 120 × 80 × 171 cm |
| Net Weight | 565 kg |
| Control System | PLC + Touch Screen |
| Communication Interface | Ethernet Port |
4. Typical Applications
The NZYQ2222 Dual Cell HTHP Curing Chamber is widely used in:
* Oil Well Cement Laboratories
* Cement Additive Manufacturers
* Oilfield Service Companies
* Universities and Research Institutes
* Quality Control Laboratories
Suitable for curing:
* API Class G Cement
* API Class H Cement
* Lightweight Cement Systems
* High Density Cement Systems
* Latex Cement Systems
* High Temperature Cement Systems
* Gas Migration Control Cement Systems
6. Advantages of a Dual Cell Design
Compared with conventional single-cell curing chambers, the NZYQ2222 offers:
* Higher specimen capacity
* Increased laboratory productivity
* Improved testing efficiency
* Reduced testing turnaround time
* Better utilization of laboratory resources
* Lower operating cost per specimen
* Ideal solution for high-volume testing laboratories
7. Frequently Asked Questions (FAQ)
Q1: What are the advantages of a dual cell HTHP curing chamber?
A: A dual-cell design allows more specimens to be cured simultaneously, increasing laboratory efficiency and reducing testing time.
Q2: How many cement specimens can NZYQ2222 cure simultaneously?
A: The chamber can cure up to 16 cement specimens simultaneously.
Q3: Does the instrument support remote monitoring?
A: Yes. The Ethernet communication interface allows connection with software for monitoring and data management.
Q4: What is the maximum temperature and pressure?
A: Maximum temperature is 370°C and maximum working pressure is 40 MPa.
Q5: Is the instrument suitable for high-volume laboratory testing?
A: Yes. The dual-cell configuration is specifically designed for laboratories that require higher throughput and greater specimen capacity.
8. Request a Quote
If you are looking for a reliable Dual Cell HTHP Curing Chamber for oil well cement testing, the NZYQ2222 provides high specimen capacity, advanced automation, and dependable HTHP performance.
We can provide:
* Technical Datasheets
* Operation Manuals
* Spare Parts Lists
* Installation Guidance
* Quotation and Delivery Schedule
